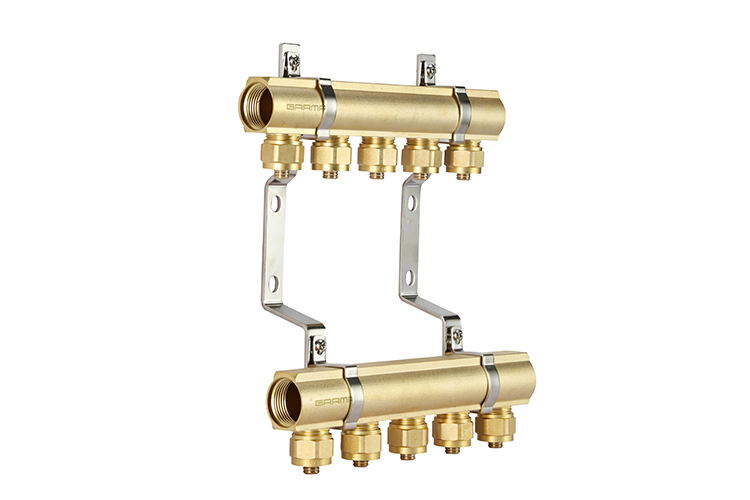

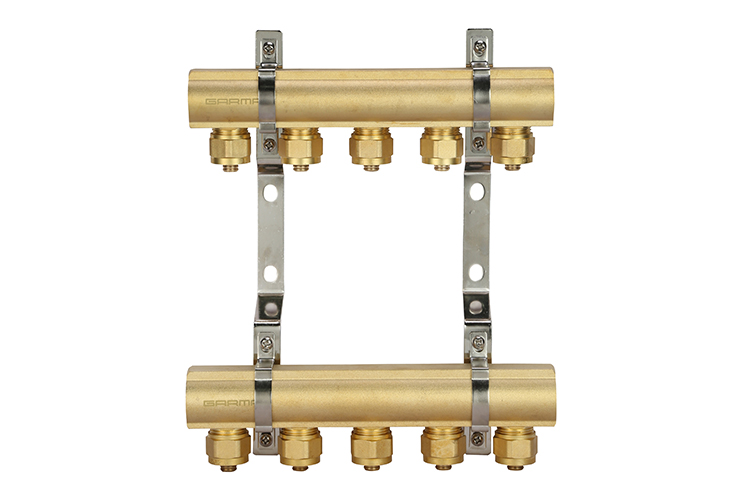

基本款分集水器 GM801
一体成型黄铜分集水器，无阀芯无阻力设计流量更大，主干和出水口一体成型无拼接漏水隐患，专门针对散热器章鱼式系统设计。
产品详情和技术参数
| 指标名称 | 具体参数 | 指标名称 | 具体参数 |
| 产品名称 | 基础款分水器 | 产品型号 | GM801 |
| 产品原材料 | Hpb57-3黄铜 | 生产标准 | GB/T 29730-2013 |
| 主支管接口 | F1''-M3/4'' | 回路型号 | 2-8路 |
| 表面处理 | 酸洗表面 | 回水阀芯 | 无阀芯 |
| 分支管管间距 | 50mm | 供回水管中心距 | 210mm |
| 膛径尺寸 | DN25 | 商品条码 | 6975891790498 |

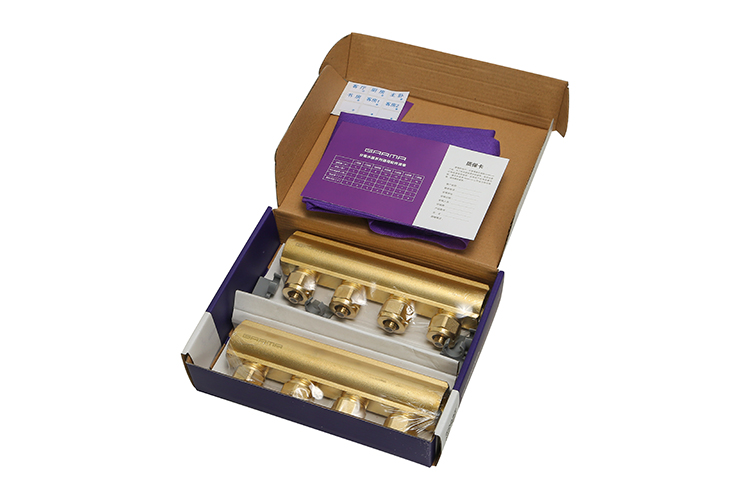

| 包装情况 | 瓦楞纸盒 | 包装规格 | 1套/盒 |
| 最大工作压力 | 16bar | 最大工作温度 | 110℃ |
| 气密性能 | 20kPa | 耐压强度 | 1.2MPa |
| 主体抗弯性能(10S) | 340N·m | 支管抗弯性能(10S) | 225N·m |
下载
质保
分水器类产品质保2年，保用10年；因与适配器不匹配或施工不规范造成的问题不在质保范围。
