恒温阀 GM211

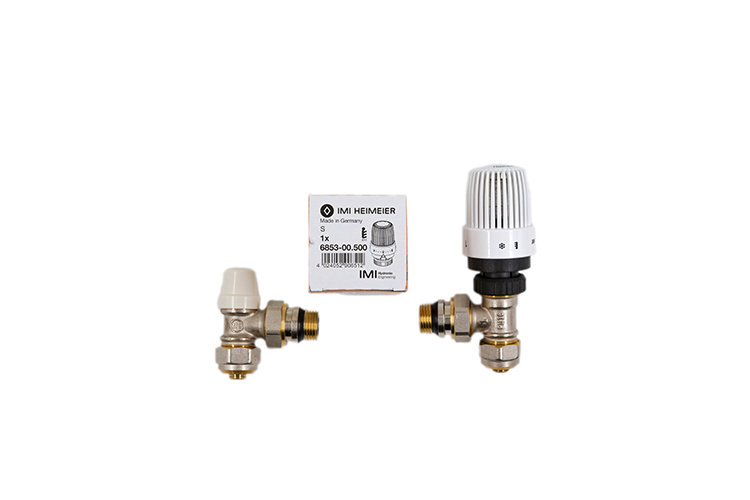

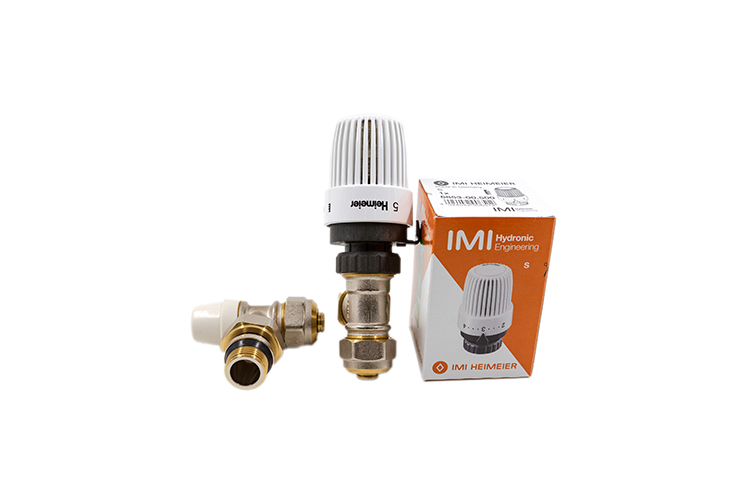

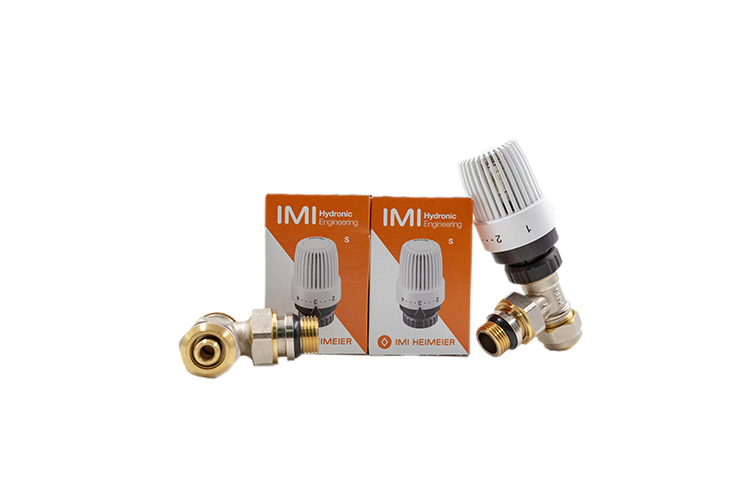

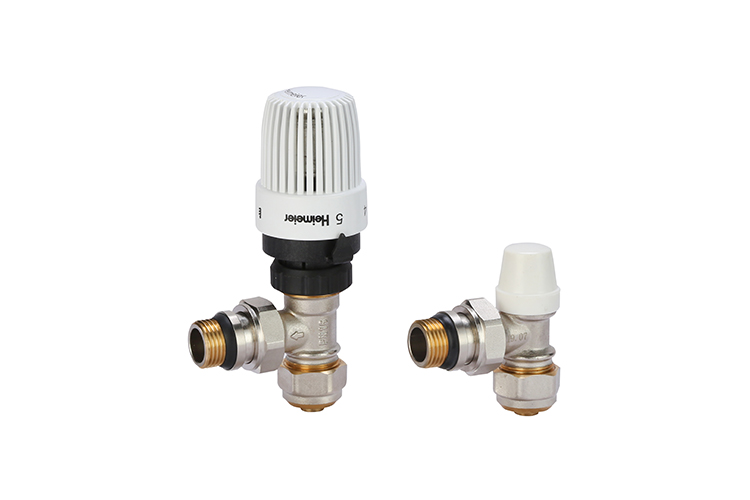

恒温阀自动感温自动调节阀门开启大小维持室内恒温，德国海梅尔原装进口恒温头，超大阀体通径更大流量更高KV调节值更宽。
产品详情和技术参数
| 指标名称 | 具体参数 | 指标名称 | 具体参数 |
| 产品名称 | 嘉玛恒温阀 | 产品型号 | GM211 |
| 订货货号 | 145315105 | 商品条码 | 6975891790146 |
| 产品材质 | Hpb59-1 | 生产标准 | GB/T 26712-2011 |
| 接管尺寸 | 1216 | 接丝尺寸 | M1/2'' |
| 表面处理 | 镀镍 露铜边 | 螺纹密封 | 带胶圈和档环 |
| 水温范围 | 0~95℃ | 工作介质 | 水、水与30%乙二醇溶液 |
| 强度测试 | 2.4Mpa | 密封测试 | 1.7Mpa |
| 螺纹扭矩 | 61N·m | 手柄扭矩 | 4N·m |
| 阀门流量(0.3Mpa) | 0.68L/S | 产品重量 | |
| 手柄类型 | 恒温手柄 | 手柄品牌 | IMI HEIMEIER |
| 额定温度范围 | 6-28℃ | 防冻保护 | 支持 |
| 温度限定 | 带固定销 | 连接接口 | M30*1.5 |
下载
质保
阀门类产品质保3年，管用10年。因管道壁厚不规范、施工不规范造成的问题不在质保范围。
