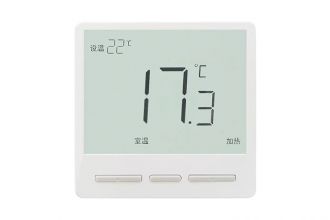

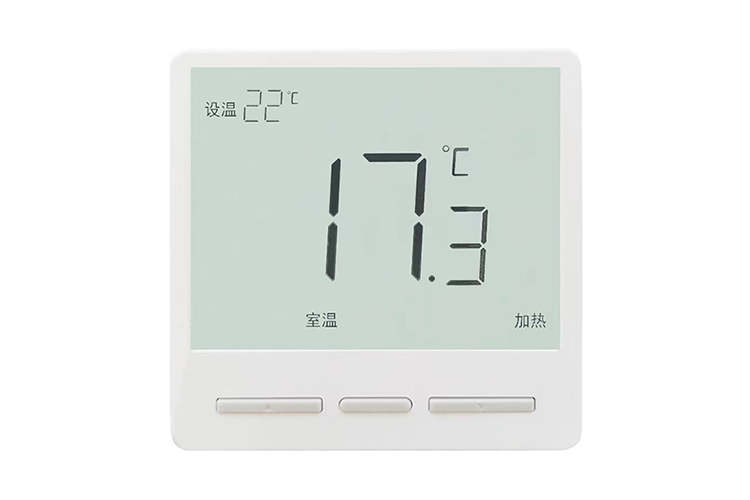

  • 温控器 GM617

    高清大屏窄边设计醒目字体中文显示,支持外接温度传感器可控制地面温度,超大负载电流设计规避传统温控抗电路波动风险。

    超大高清屏中文大字体老幼友好

    超大负载电流设计不怕电路波动

    支持外接温感可气温地温双控制

    获取免费报价

    优势和设备信息

    • 中文显示

      众多温控器都是英文或图标显示,学习有难度,中文显示更便于老人孩子使用。

    • 超大屏显

      极窄边框和超大屏幕的组合,外观清新简约,显示对比高清,尽显包豪斯风格。

    • 可控地温

      支持外接温度传感器,可切换室温控制模式、地温控制模式以及双温双控模式。

    • 25A负载

      采用超大负载电流设计,规避传统温控3A负载容易在电路波动时的烧毁风险。

    产品详情和技术参数

    指标名称 具体参数 指标名称 具体参数
    产品名称 嘉玛温控器617 产品型号 GM617
    订货货号 141315107 商品条码 6975891790047
    工作电压 AC220V±10%  50HZ 负载电流 25A
    额定功率 4.5KW 自耗功率 2W
    测温范围 5~85℃ 测温精度 ±1ºC
    测温容差 ±2℃ 容差可调 1-9ºC
    外置温感 支持 无源联动 不支持
    无源电流 不支持 无源反向 不支持
    运行模式 不支持 一键功能 不支持
    定时开关 不支持 编程运行 不支持
    防冻功能 不支持 童锁功能 支持
    屏幕大小 4.6寸LCD屏幕 彩色显示 不支持
    支持APP 不支持 无线模式
    产品尺寸 86*86*40(14)mm 安装孔距 60mm

    质保

    温控类产品质保1年,管用10年。因供电不规范、接线错误、传感器模式错误造成的问题不在质保范围。
